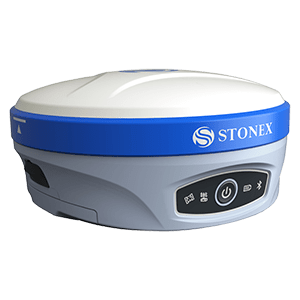

STONEX S10
The New Generation Smart and Open GNSS Receiver
STONEX S10, the most advanced integrated GNSS Receiver ever appeared on
the geomatic scene, leads to a new generation of “active GPS” that makes
available a complete set of commands for the customization of any
software application.
STONEX SC200
CORS Station, top level performances at an affordable price
The STONEX SC200 C.O.R.S. stations (Continuously Operating Reference Station) are GNSS multi-frequency receivers designed to be used either as stand-alone reference stations or as part of a GNSS stations’ infrastructure.
STONEX S800
Second Generation RTK
Equipped with an advanced 555 channels GNSS board and capable of supporting multiple satellite constellations, including GPS, GLONASS, BEIDOU and GALILEO, STONEX S800 GNSS receiver is an ideal solution for any surveying field work.The advanced receiver design gives S800 excellent signal tracking ability and interference resistant capacity.
Description
INNOVATIVE DESIGN
The main structure of S10 is built with magnesium alloy material, making it strong, smart, light and eye-catching.
INTERNAL STRUCTURE
The sophisticated internal structure design guarantees a compact housing, optimizing performances and power consumption.
AIS
The Auxiliary Inertial System, including Tilt Centering and Electronic Bubble measurement
methods, improves the surveying efficiency and facilitates the
positioning in some special sites, such as corners, pipelines, edges of
walls, etc.
3.5G WIRELESS DATA TRANSMISSION
High-speed mobile data connection capability ensures a very low latency in differential data transmission.
WEBUI CONTROL
To initialize, manage, monitor the
settings of the receiver and to download data using portable or fixed
PC, smart phone or tablet with Wifi capability.
SMART AND OPEN
Stonex S10 is based on CORTEX-A8
platform with on board LINUX smart system combined with an excellent
networking system. The system will include smart services like Cloud access and Triple data safe-guard.
INTELLIGENT BATTERY
The power level can be checked from the controller and directly from a simple led bar.
IP67 CERTIFICATION
For operations in various kinds of extremely tough environments.
Description
STONEX SC200 is typically used as an NTRIP server, and is the perfect equipment for many different jobs, based on the acquisition, the processing, the distribution and the management of GNSS correction data; moreover the SC200 supports raw data logging with up to 50Hz update rate.
The SC200 is designed in rugged and lightweight way and can be supplied from both DC Battery and AC Network to support temporary GPS network (i.e. construction sites), managing many NTRIP connected rovers. This receiver has also an internal 5000 mAh battery for 16 hours of continuos power.
STONEX SC200 can be easily configured by an Internet interface, moreover it has a wide OLED display make it easy for any user to configure because a software interface is not required.
SC200 32Gb internal memory enables the collection and the storage of limitless amount of data. The available datalink includes WiFi, 3G WCDMA modem and Bluetooth.
STONEX SC200 works seamlessly with the STONEX software NTRIP
CASTER, and is fully compatible with most of the worldwide known GPS
network software; thus, SC200 can be used both for starting a new
network infrastructure or for an integration into existing networks.
KEY FEATURES:
- Proven STONEX GNSS technology
- Internet connection by Ethernet device and optional output for external radio/modem
- Internal power supply, USB, WiFi and 3G Wireless connections
- Top-level performances at budget price
- Several software solutions depending on customer’s request
Description
The independent R&D LINUX+CORTEX intelligent platform provides users high performance computing and infinitely expanding. The unique internal antenna combines GNSS, Bluetooth and Wi-Fi integrated modules tooptimize space and increase performance.
Advantages of portability and speed of operation make S800 GNSS receiver particularly suitable for fieldwork in areas of complex terrain.
The Stonex S800 has built-in internal Bluethooth capability that allows the users to choose their data collector model and software. STONEX S800 is a rugged, compact, lightweight GNSS receiver.
It is designed to endure to a 2m pole drop on concrete floor without damage thanks to the strong external magnesium alloy framework.
The global aluminum alloy capsule design provides 5 individual space for antenna, radio, board card, main board and battery.
The total dimension of the receiver is 146mm x 146mm x 76mm. The internal battery of 6800mAh garantees the continuous working up to 10 hours.
Its UHF internal radio has several transmission protocols that
allow the S800 to communicate with any other type of receiver in a
simple and efficient way.
